  Current Location:Home Products Bonnell Spring Coiler HS-BSC60

Bonnell Spring Coiler//HS-BSC60

　Product Description

Please download(4.1 bonnell spring coiler HS-BSC60.pdf )

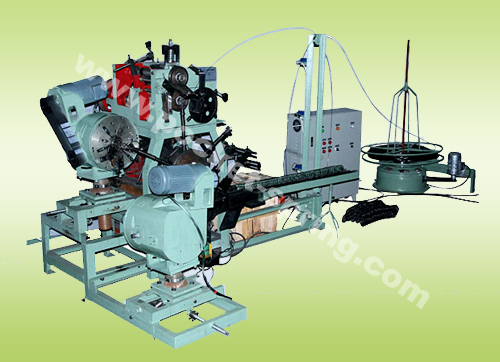

HS-BSC60 Bonnell Spring Coiler

Product Description:
*produce 55springs/min;
*with heat-treatment device;
*easy maintainance.

Bonnell spring coiler  HS-BSC60
Technical Information:
Performance
production capacity 　 55 springs/min
 Consumptive Material Specs
steel wire
wire gauge 　 1.8--2.4mm
Iner Dia. of wire roll 　 Min/300mm
Outer Dia. of wire roll 　 Max/700mm
Max weight of wire roll 　 Max/250kg (optional:1000kg)
General Data
Spring type 　 Bonnell
Spring Dia. 　 65--93mm
Spring Height 　 80--220mm
(defferent parts required）
Spring turn 　 4-8n
Main Drive Power 　 4.5KW
Wire rack Power 　 1.1KW
Heat Treatment Power 　 15KW
Weight 　 Approx/1500kg
Power Requirements 　  Three Phase-380V, single phase  220V
50 – 60 HZ
