  Current Location:Home Products Pocket Spring Assembler HS-SAM60

Pocket Spring Assembler//HS-SAM60

 Product Description

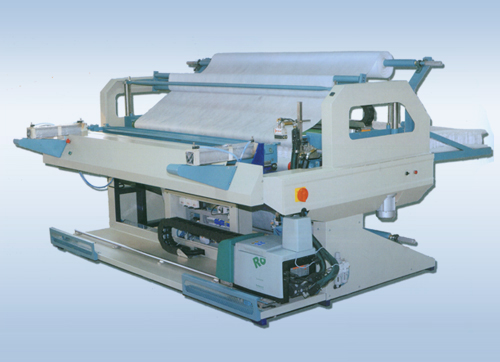

pocket spring assembler HS-SAM60

Product Description:
pocket spring assembler HS-SAM60, is exploited for the automatic pocket spring machine, They form a self-contained, high efficiency and high quality product line of mattress.

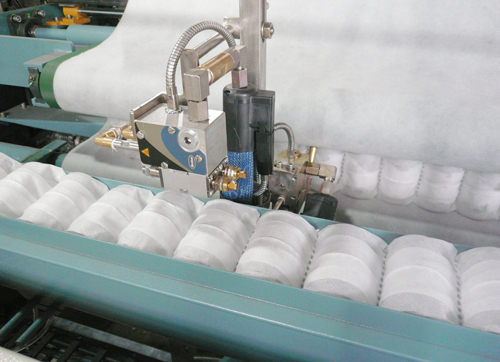

This machine can conglutinate the pocket springs orderly and closely. It avoids the trouble of buckling the springs and illogical use of the pocket springs. If you connect the pocket springs with buckles, it will make them too firm and the springs cannot take the independent effect.

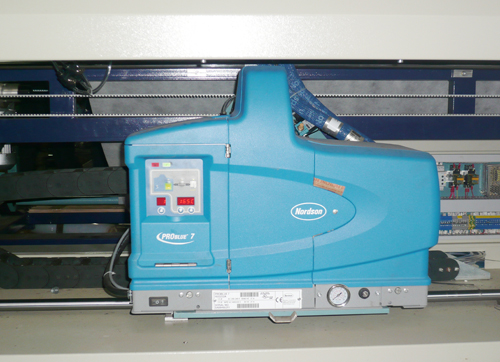

That is not the real independent pocket spring mattress. However, this machine conglutinates the springs with soft glue; it arranges the springs not so slack or firm, the spring can flex freely.

So the mattress manufactured by this machine is more scientific. According to the client, model provide four conglutination modes in the human-machine interface: with or without fabric, side-by-side or cross conglutination.

Technical characteristics:
1. Economic Machine
2. Easy to adjust






Spring Type Pocket
Production Speed 2.5-3 Rows/Minute
Spring Diameter Φ35-80mm
Spring Height Φ80-Φ200mm
Spring Coils 4-8 Coils
Fabric width 300-2100mm
Fabric Material 50-150G/M2
Lubrication Fully Automatic Standard

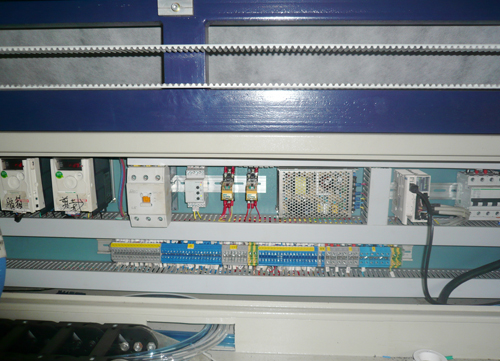

Control PLC
Power Supply 3Φ 380V/220V 50/60HZ 4.5KVA Input Fuse 50A
Air Consumption Approx.20M3/H 0.8Mpa
Operative Temperature 0oC- +45oC
Machine weight 1350KG
