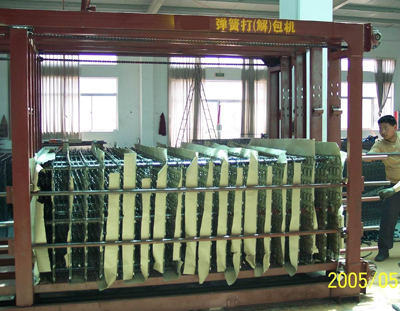

HS-SUP-CP50
Spring unit compress packing machine |
| Technical Information: |
| Performance |
compress-packing both Bonnell spring unit and Pocket spring unit with frame.
|
| production capacity |
|
1 balse/30 mins
(depends on workers' perfomance) |
| Consumptive Material Specs |

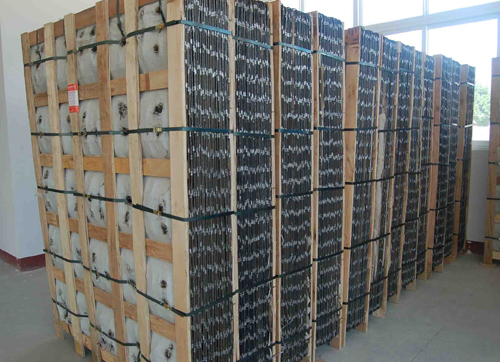

Standard Packing Material
|
plywood |
|
2cm thickness
15cm width |
| pp woven |
|
more than 50g |
| steel strap |
|
size:0.7*19mm
tensile strenth:750*850 Mpa/mm2 |
| strap fastener |
|
0.4mm thickness |
| General Data |

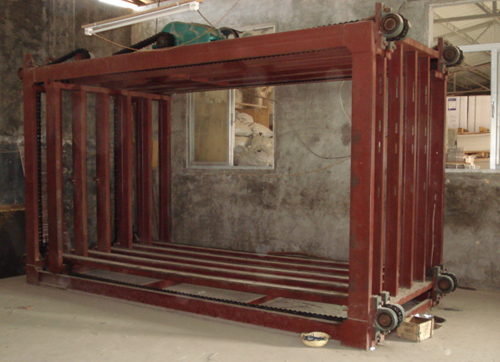

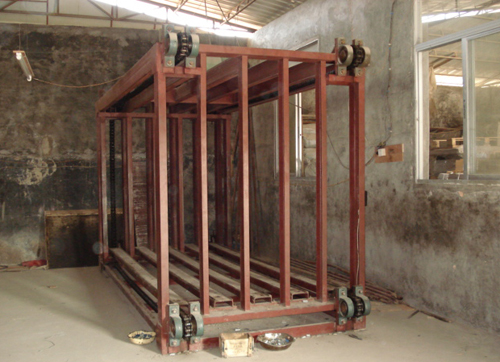

| Machine outer dimentions |
|
length: 4.5m(adjustable)
width: 2.0m(adjustable)
height: 2.6m(adjustable) |
| Machine inner size |
|
length: 4.2m(adjustable)
width: 2.0m(adjustable)
height: 2.4m(adjustable) |
| Spring unit width |
|
Max/2000mm |
| Spring unit length |
|
Max/2300mm |
| Spring unit thickness |
|
Max/180mm |
| thickness of finished bale |
|
Max/380mm |
| Spring unit pcs per bale |
|
16--22pcs/bale |
| work force |
|
400KN |
| Power consumption in total |
|
7.5w |
| Power requirements |
Voltage |
|
3AC 380V |
| Frequency |
|
50/60Hz |
| Input fuse |
|
15A |
| Cable section |
|
4×6mm² |
| Weight |
|
4000kg |
| Other Tool required |
|
around 20pcs of steel tube
with sharp point |
